Laser Scanning Micrometer Shaft
Measurement Solution

Measure shaft diameter and TIR simultaneously, in a single automated pass, across hydraulic, bearing, electric motor, and valve spool applications.

LSM_2

Key Capabilities:

  • Up to 3,200 scans per second for high-speed or vibration-prone environments
  • Simultaneous diameter and TIR measurement in a single automated pass

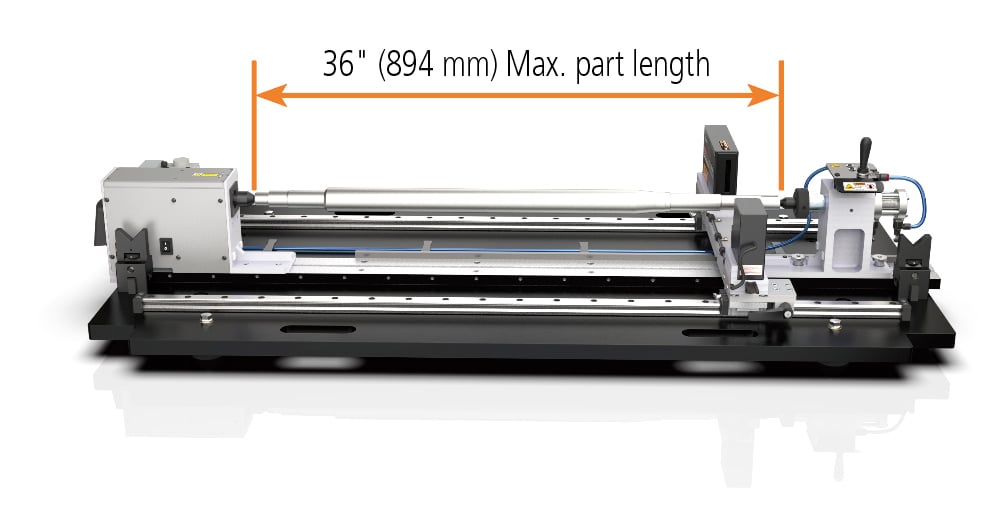

  • Handles parts up to 36" (894mm) and 4.72" (120mm) in diameter (model dependent)
  • Motorized headstock for automated TIR analysis
  • Direct data output to MeasurLink® SPC or Excel
  • Fixturing can be customized to support a range of shaft sizes

Semi-automated Diameter and

TIR Measurement

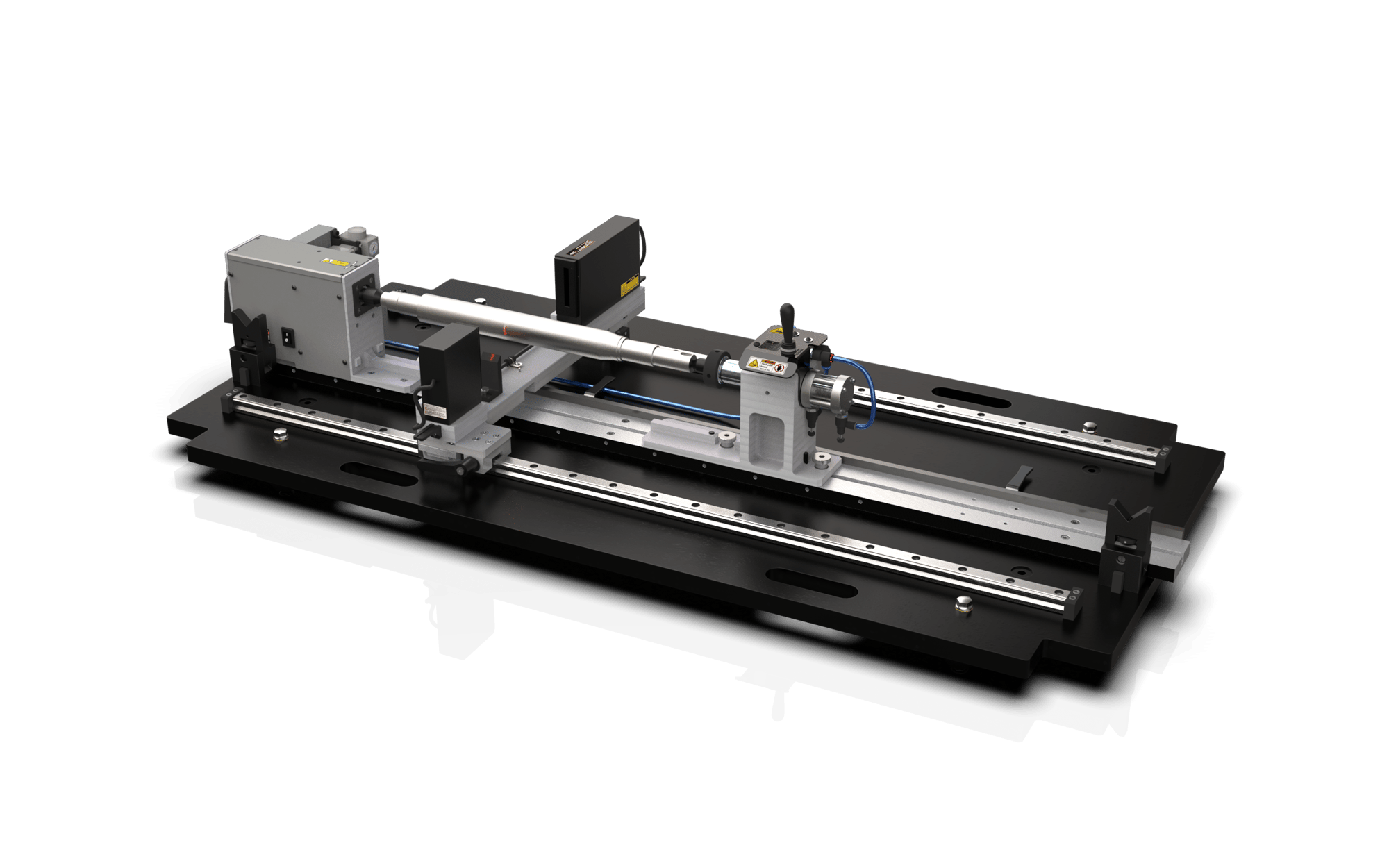

Introducing the Mitutoyo Laser Scan Micrometer Shaft Measurement Solution, a semi-automated laser system built for precision shaft inspection across hydraulic, bearing, electric motor, and valve spool applications.

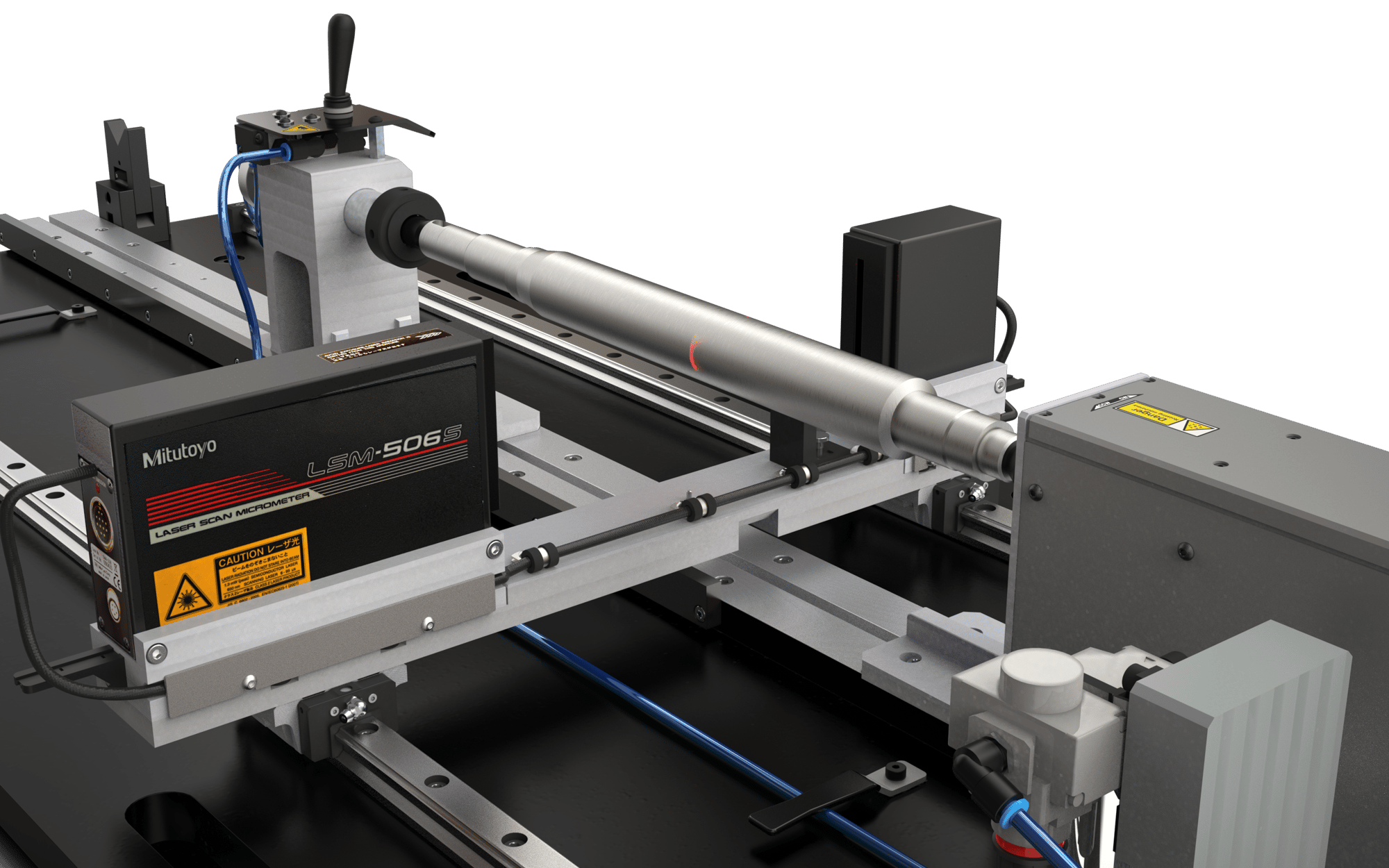

Engineered to support a wide range of shaft types on a single platform including hydraulic rods, cylinder shafts, bearing surfaces, EV rotor shafts, precision valve spools and more

LSM

 Unlock the Power of Automated Shaft Inspection Today

Laser Scan Micrometer Models

Part Diameter Size Range LSM Accuracy* LSM Repeatability
LSM-503S

.3 mm to 30 mm

+/- 1.0μm

 +/- 0.11μm
LSM-506S 1 mm to 60 mm +/- 3.0μm +/- 0.36μm
LSM-512S 1 mm to 120 mm +/- 6.0μm +/- 0.85μm

*Total system accuracy will be evaluated for each application.

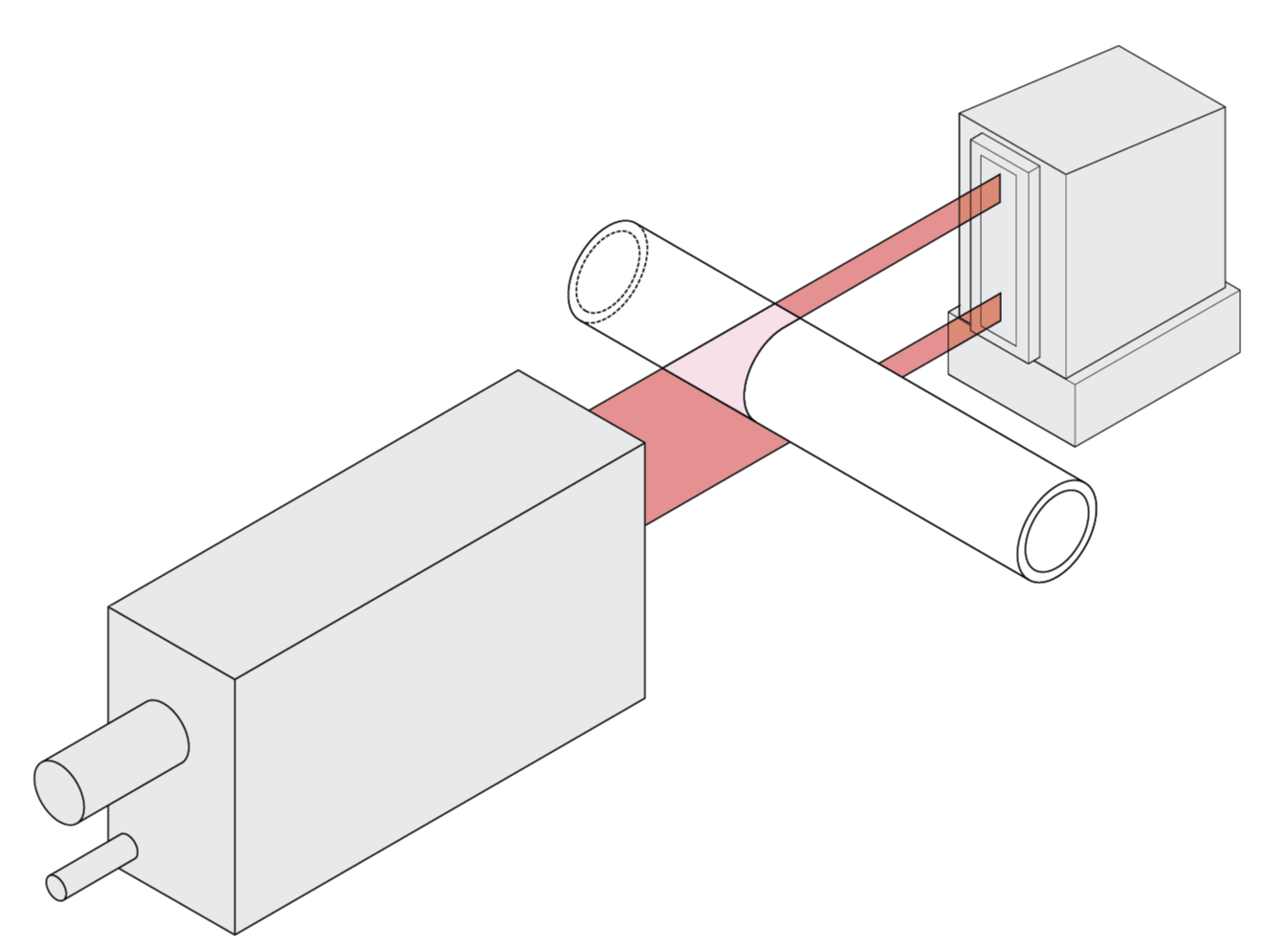

LSM2-1
mockupmlink

Data Management Options

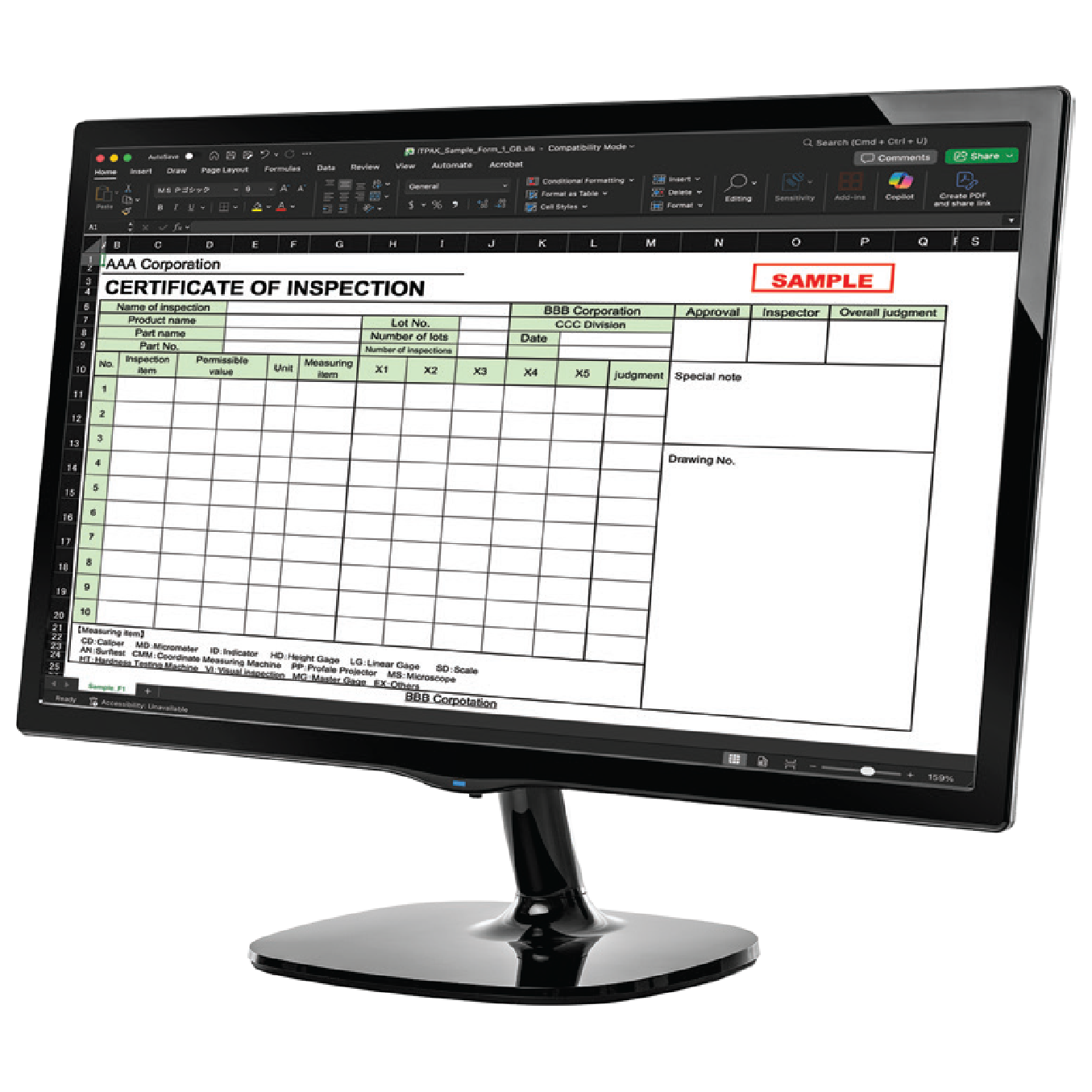

The Laser Scan Micrometer integrates measurement data with Mitutoyo MeasurLink® Data Collection Software and supports direct input to any spreadsheet.
View MeasurLink

Take the Next Step with our Custom Prebuilt Solutions
