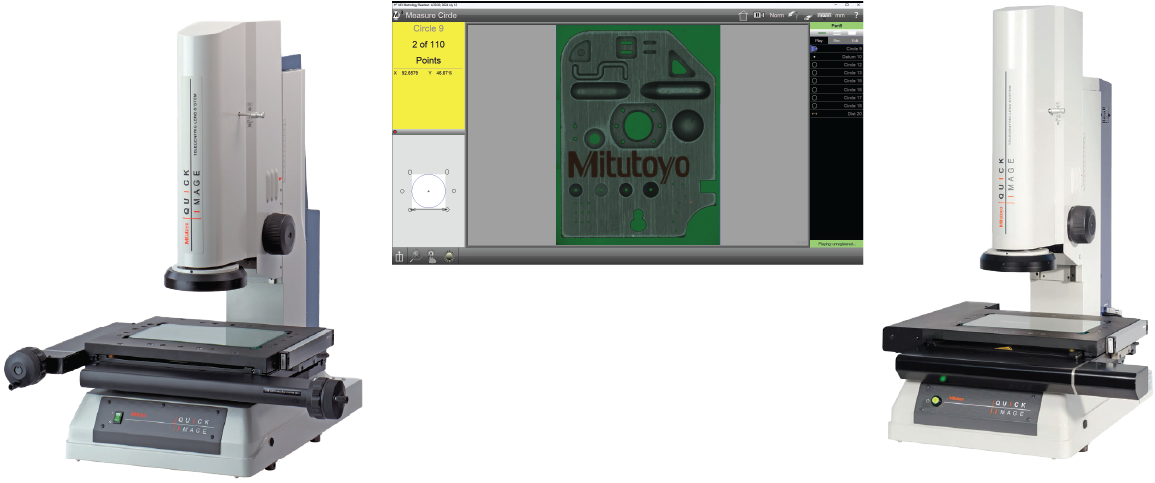

Introducing the Mitutoyo Quick Image with Metlogix M3 Software
Easy to Use
The Mitutoyo Quick Image vision system features a straightforward, intuitive user interface that simplifies complex measurement tasks. Thanks to the new Metlogix M3 software, the Quick Image touchscreen interface with gesture controls makes navigation effortless, allowing users to quickly access functions and settings. The system’s image stitching capabilities measure parts larger than the field of view, and its icon-driven design ensures that even users with minimal training can operate the system effectively.
Measure Faster. Smarter. Contact-Free.
Compare The Mitutoyo QI Series
| Manual QI-A1010D | Manual QI-A2010D | Manual QI-A2017D | Manual QI-A3017D | Manual QI-A4020D | Motorized QI-C2010D | Motorized QI-C2017D | Motorized QI-C3017 | |
|---|---|---|---|---|---|---|---|---|
| Measuring range (X×Y) | 3.94" x 3.94" 100×100mm | 7.87" x 3.94" 200×100mm | 7.87" x 6.69" 200×170mm | 11.8" x 6.69" 300×170mm | 15.7" x 7.87" 400×200mm | 7.87" x 3.94" 200×100mm | 7.87" x 6.69" 200×170mm | 11.8" x 6.69" 300×170mm |
| Maximum stage loading* | Approx. 22 lbs.(10kg) | Approx. 22 lbs.(10kg) | Approx. 44 lbs.(20kg) | Approx. 44 lbs.(20kg) | Approx. 33 lbs.(15kg) | Approx. 22 lbs.(10kg) | Approx. 44 lbs.(20kg) | Approx. 44 lbs.(20kg) |
| Main unit mass | Approx. 143 lbs. 65kg | Approx. 152 lbs. 69kg | Approx. 330 lbs. 150kg | Approx. 348 lbs. 158kg | Approx. 361 lbs. 164kg | Approx. 158 lbs. 72kg | Approx. 337 lbs. 153kg | Approx. 354 lbs. Approx. 161kg |
M3 Integration
Metlogix M3 is an intuitive and thoughtful icon-driven user interface with a flexible probe library and powerful tolerancing and programming making it ideal for video measurement solutions. The M3 software enhances the versatility of the Mitutoyo Quick Image by offering a range of advanced features that further expands the Quick Image's already extensive and versatile capabilities. The software's ability to handle gesture controls on the touchscreen further streamlines operations, making the Quick Image system adaptable to a wide array of industrial measurement needs.
Powerful Combination of Precision, Versatility & Ease of Use
The new Mitutoyo Quick Image system with M3 software is a smart investment, offering a perfect blend of innovative technology and ease of use, making it ideal for highly accurate and efficient non-contact measurements. The system enhances efficiency by streamlining measurement processes with its intuitive interface and gesture controls, significantly reducing setup and measuring times, boosting productivity and efficiency without sacrificing precision. The M3 software's advanced features make it easy to handle even the most complex tasks with minimal effort.
